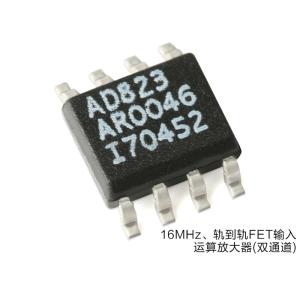

SOIC-8 Precision Amplifiers Analog Integrated Circuits AD823ARZ-R7

Product Categories

HK NeoChip Technology Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : ADI

Model Number : AD823ARZ-R7

Payment Terms : T/T

Price : 1.6u

Control Features : Enable, Frequency Control, Soft Start

Input Voltage Range : ±10V

Slew Rate : 0.5V/µs

Digikey Programmable : Not Verified

Mfr : Analog Devices Inc./Maxim Integrated

Oscillator Type : Internal

Package : Tape & Reel (TR)

Product Status : Obsolete

Output Configuration : Positive or Negative

Number Of Channels : 4

Connectivity : EBI/EMI, I²C, SPI, UART/USART

Program Memory Size : 512KB (512K x 8)

Material : silicon wafer

Part Status : Active

Protocol : RS232, RS485

Contact Now

Manufacturer:	Analog Devices Inc.
Product Category:	Precision Amplifiers
RoHS:	Details
Number of Channels:	2 Channel
GBP - Gain Bandwidth Product:	10 MHz
SR - Slew Rate:	25 V/us
Vos - Input Offset Voltage:	700 uV
Ib - Input Bias Current:	30 pA
Supply Voltage - Max:	36 V, +/- 18 V
Supply Voltage - Min:	3 V, +/- 1.5 V
Operating Supply Current:	7 mA
Output Current per Channel:	17 mA
CMRR - Common Mode Rejection Ratio:	82 dB
en - Input Voltage Noise Density:	16 nV/sqrt Hz
Package / Case:	SOIC-8
Mounting Style:	SMD/SMT
Shutdown:	No Shutdown
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Series:	AD823
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Analog Devices
Dual Supply Voltage:	+/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
Height:	1.5 mm
Input Voltage Range - Max:	13.8 V
Length:	5 mm
Maximum Dual Supply Voltage:	+/- 18 V
Minimum Dual Supply Voltage:	+/- 1.5 V
Operating Supply Voltage:	3 V to 36 V
Output Type:	Rail-to-Rail
Pd - Power Dissipation:	900 mW
Product:	Precision Amplifiers
Product Type:	Precision Amplifiers
PSRR - Power Supply Rejection Ratio:	80 dB
	750
Subcategory:	Amplifier ICs
Type:	General Purpose Amplifier
Voltage Gain dB:	93.06 dB
Width:	4 mm
